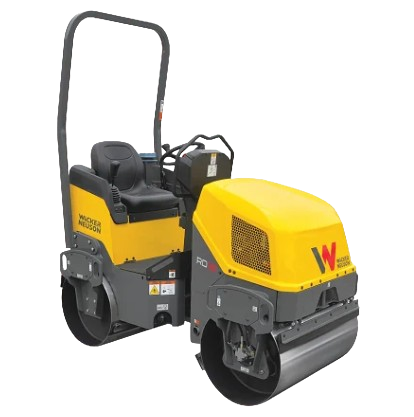

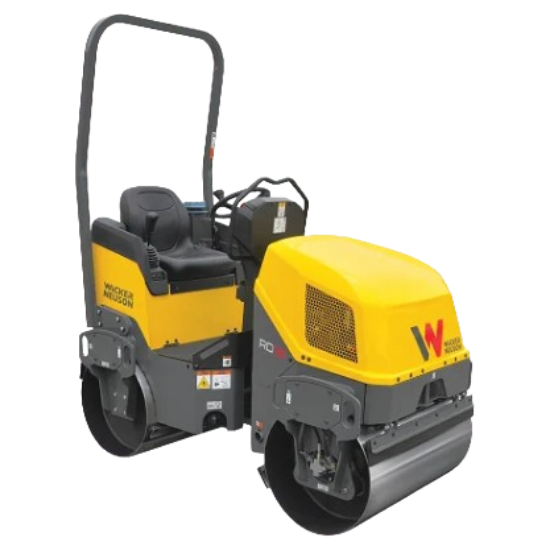

ROLLER, RIDE ON 1.25T VIB

Start date: *

End date: *

Full Description

Dual drum drive and articulated steering for extremely accurate control. Front drum vibration with static rear drum leaves a quality asphalt finish. A high exciter frequency allows compaction at faster speeds, even coverage which still delivering excellent results

Minimum :	$109.78 per 4 hours
Daily :	$165.19
Weekly :	$494.53

increase decrease

Overview
Contact Us

Full Description

Only registered users can write reviews

Your name *

Your email *

Enquiry *

Specifications

Main Content

RD12A Technical specifications

Metric » Imperial »

RD12A Roller

Operating data
Operating weight max.	2,964 lb
L x W x H	74 x 38.8 x 90.6 in
Drum width	35.4 in
Drum diameter	22 in
Side clearance right	1.7 in
Side clearance left	1.7 in
Curb clearance right	15.7 in
Curb clearance left	15.7 in
Centrifugal force dynamic (front drum)	3,400 lbf
Frequency	4,200 Vpm
Amplitude	0.043 in
Linear force - front / rear (static)	31.4 / 39.5 lb/in
Linear force dynamic (front)	96 lb/in
Travel speed forward	5 mph
Travel speed reverse	5 mph
Surface capacity area	78,000 ft²/h
Gradeability max.	30 %
Turning radius outside	112.2 in
Engine / Motor
Engine / Motor type	air-cooled, 2-cylinder, gasoline engine
Engine / Motor manufacturer	Honda GX630
Displacement	42 in³
Operating performance max. rated at 3600 rpm	20.8 hp
RPM / speed operating speed	3,100 rpm
Fuel consumption	1.6 US gal/h
Filling capacities
Fuel tank capacity	6.3 US gal
Water tank capacity	35 US gal
