LIFT, 41'-50' TOWBEHIND

Start date: *

End date: *

Full Description

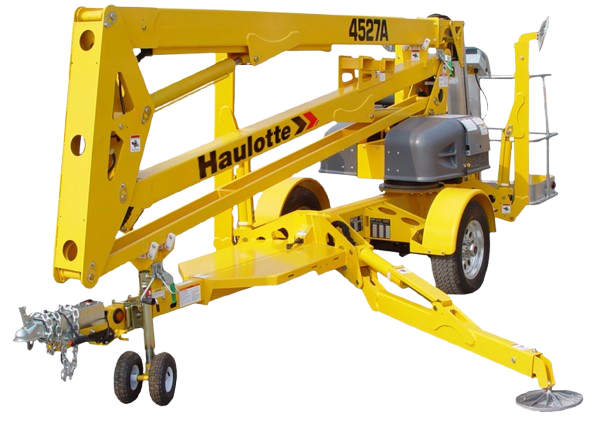

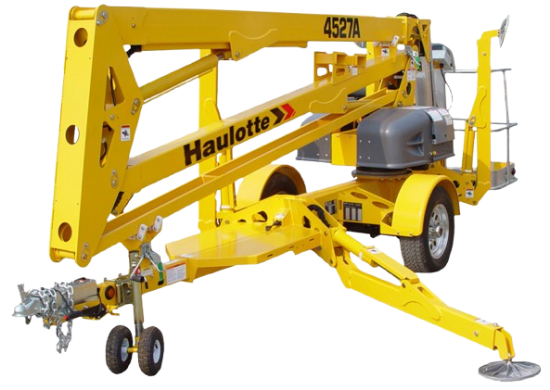

With a working height of 51 feet and useable both in and outdoors, the 4527 A is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design makes them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.

Minimum :	$229.76 per 4 hours
Daily :	$289.25
Weekly :	$867.66

increase decrease

Overview

Full Description

Specifications

Working height		51 ft
Platform height		45 ft
Horizontal outreach (from centerline)		27 ft
Horizontal outreach (from edge of footpad)		21 ft
Up and over height		20 ft 9 in
Lift capacity		500 lb
Length - stowed		20 ft 8 in
Width stowed		5 ft 6 in
Height stowed		6 ft 8 in
Platform size		4 ft 1 in x 2 ft 9 in
Widest Point		13 ft 9 in
Widest Point	13 ft 6 in
Turntable rotation	350° non-continuous
Jib - length	4 ft 3 in
Jib - Vertical Motion	150° (+ 70 / - 80)
Tow speed rating	65 mph
Leveling capability	12.5 °
Tire size	ST 225 / 75 R15
Power source	4 x 6 V 245 amp-hr
Tongue weight (no options)	290 lb
Weight (no options)	4,200 lb
