DINGO, 1000

Start date: *

End date: *

Full Description

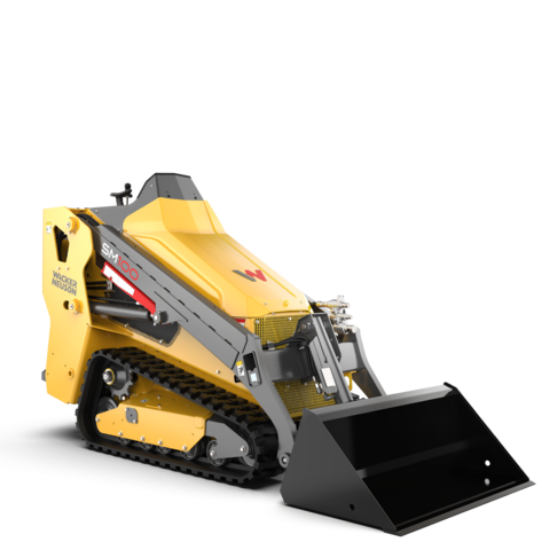

The SM100 is powered by a 24.7 horsepower Yanmar diesel engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power.
13 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments.

The SM100 offers class-leading travel speed at 5.2 mph to help get more done, faster.

Wide tracks provide low ground pressure, reducing turf disturbance and repair work.

The overall machine width of 35.5 inches fits through doorways, gates and other tight spaces.
The overall narrow width allows the machine to access urban areas and smaller yards while the light weight (3,300 lbs.) makes it easy to transport.

We offer delivery, trailer is extra!

Tax and damage waiver is not included in the price.

Click here for video

increase decrease

Full Description

The SM100 is powered by a 24.7 horsepower Yanmar diesel engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power.
13 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments.

The SM100 offers class-leading travel speed at 5.2 mph to help get more done, faster.

Wide tracks provide low ground pressure, reducing turf disturbance and repair work.

The overall machine width of 35.5 inches fits through doorways, gates and other tight spaces.
The overall narrow width allows the machine to access urban areas and smaller yards while the light weight (3,300 lbs.) makes it easy to transport.

We offer delivery, trailer is extra!

Tax and damage waiver is not included in the price.

Click here for video

Your name *

Your email *

Enquiry *

Specifications

Ground Pressure (standard track)	4.1 psi
Break Out Force Bucket	3,108.4 lbf
Break Out Force Lift Arm	3,108.4 lbf
Travel speed	5.2 m/H

Overall Length without bucket	84.3 "
Overall Length with Bucket	108 "
Overall width without bucket	35.5 "
Height	58.2 "
Bucket Hinge Pin Height	85.7 "
Bucket roll back at ground	25 °
Bucket roll back at maximum height	92 °
Angle of departure	25 °
Bucket dump height at maximum height	62.8 "
Bucket dump angle at maximum height	42 °
Operating weight	3,300.3 lb
Track width	9.1 "
Ground clearance	7.8 "
Length of Track on Ground	43 "
Dump reach at maximum height	21.9 "

Flow rate	12.9 gal/mi
Auxiliary relief pressure	3,045 psi

Fuel Tank capacity

16.9 gal US

Tip Load	2,855 lb
Rated Operating Capacity at 50% Tip Load	1,426.4 lb
Rated Operating Capacity at 35% Tip Load	998.7 lb
